There might be more tutorials as time passes on.

Things you need/have installed:
-DSdevTOOL.tar.gz (PM me or look in the thread "Some interesting tools I found...")
-3dsmax6 (~~PM me~~ or this. EDIT: Don't PM me because I don't think I have it anymore and I hardly ever come online)

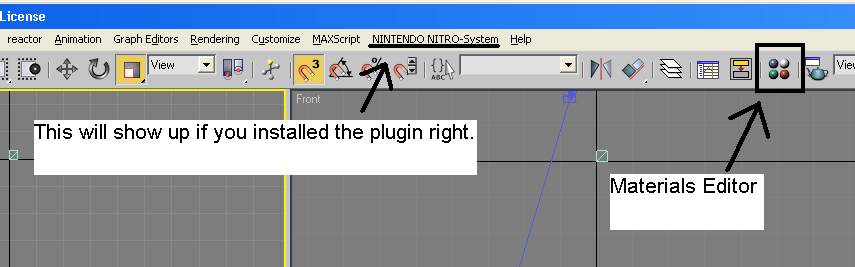

-You need to install the 3dsmax6 plugin in DSdevTOOL.tar.gz
1. Create an object. Like a cube. Or import an object.

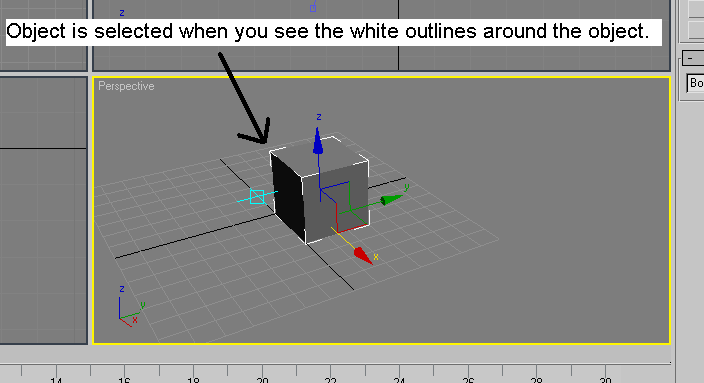

2. Select the object (left-click)

3. Go to the materials editor (the button on the far upper right that has 4 spheres one is yellow)

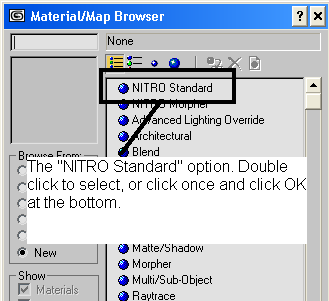

4. The button that says "Standard," click that and select "Nitro Standard."

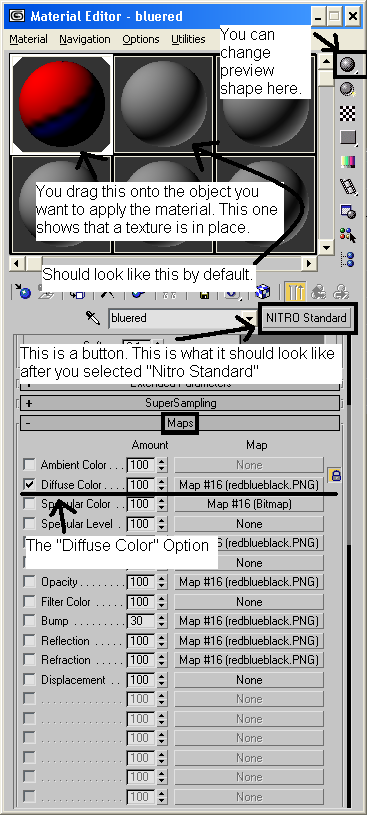

5. Go down and find the "Maps" tab. Select it.
6. Check the checkbox "Diffuse Color".
7. Click the button on the right of the checkbox. Right now it should say "None"

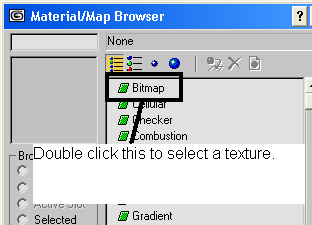

8. On the new window, select "Bitmap". Find a texture that you would like to apply to this object. 256x256 maximum works well for me.

9. When you select your texture, the window that originally showed "Maps" will now show the material properties. You don't need to configure it.
10. On the drop down box above, select the top item on the list.

11. The box that has the sphere that looks like the texture you selected is the material you need to apply. Click and drag the sphere onto the object you want to apply the material. The object may change color (it did in my case).
12. On the NINTENDO NITRO-System drop down menu, select Export with Settings. On the top two text boxes, choose a name and select a place to save the .imd file.

13. Scroll down and select "Export" If you see any box showing up stating some error, you have done something wrong.
14. Now, use G3DCVTR included in DSdevTOOL.tar.gz to convert the .imd to .nsbmd
15. Open a command prompt window
16. Type in: "(Path to G3Dcvtr.exe)" "(Path to .imd)". You can also write relative paths and not specify the path for the file that is in the same directory you're in. EDIT: Don't add arguments. I don't know what they can do.
17. An .nsbmd file should output in the same directory as the .imd. If not, check g3dcvtr's directory.
Done! Now all you need to do to get it into nsmb is to replace a file in the rom using NSMBe's replace file function. For example, you can replace all the files "w1.nsbmd, w2.nsbmd, w3.nsbmd, etc" because they have no animation, and will not cause the game to crash.

The video version is here.

~~3ds max 6 tile texturing. This may work on NSBMD's.~~

I've discovered exporting objects from sketchup will not cause the texture to stretch. Apparently, there's a setting somewhere in 3ds max 6 to determine how big each texture size is, and how it's patterend. It's not in the material editor.

Anyways, I was able to get a simple Minecraft overworld to prove that the textures can be repeated, and can have multiple textures: here.
Don't believe the picture? You don't have to when I've provided the source files.

Animated NSBMD Objects:
I finally got them to work! Here are the files.
Replace w1_tree.nsbmd with the nsbmd and w1_tree.nsbca with the nsbca to get it to work.

ray	Posted on 10-09-11, 04:48 pm (rev. 1) Hi. Link ID: 4863 +0
Roy Koopa Karma: 4021 Posts: 774/2722 Since: 06-26-11	Oh.... I forgot to look in "Maps"... But still, thank you EDIT: Hmmm doesnt work... I did all like in your tutorial _________________________ See a lots of creative DS Hacking here If you want to support me, you might check out my Patreon Page : )

LeWario	Posted on 10-09-11, 09:38 pm Hi. Link ID: 4892 +0
Banned for being a complete idiot. Karma: 529 Posts: 482/987 Since: 07-09-11	Posted by ray Oh.... I forgot to look in "Maps"... But still, thank you EDIT: Hmmm doesnt work... I did all like in your tutorial Could be because the texture you chose isn't valid. Happened to me one time. I had to reduce the image size to 256x256 and then use posturize to change the bit depth to 16. Then it works. Use my texture on "Some interesting tools I found..." for an example.

Garmichael	Posted on 10-11-11, 05:35 am Hi. Link ID: 4925 +0
Ninji Retired staff Karma: 601 Posts: 174/229 Since: 06-30-11	My ~~torrent~~ of 3DS Max 6 has been stuck at 98.5% for two days I want to try this out

LeWario	Posted on 10-12-11, 01:09 am Hi. Link ID: 4947 +0
Banned for being a complete idiot. Karma: 529 Posts: 484/987 Since: 07-09-11	Posted by Garmichael My ~~torrent~~ of 3DS Max 6 has been stuck at 98.5% for two days I want to try this out Sent you a PM.

Freeze

Posted on 10-16-11, 06:34 am (rev. 1)

Link
ID: 4959
+0

Karma: 3772
Posts: 495/2112
Since: 06-28-11

Posted by ELMario

Posted by Garmichael

My ~~torrent~~ of 3DS Max 6 has been stuck at 98.5% for two days

I want to try this out

Sent you a PM.

Honestly, I would not write this in a public thread.

Though I dont know, what the PM is actually about.

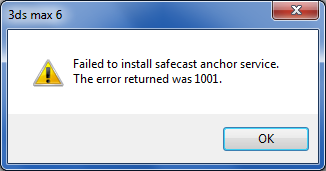

EDIT: I got an error when installing 3dsmax 6.

I think I will never be able to make this.

The error shows up at the VERY end. Then the installatio rolls back.

ray	Posted on 10-16-11, 09:43 am Hi. Link ID: 5133 +0
Roy Koopa Karma: 4021 Posts: 823/2722 Since: 06-26-11	I could give you my To*** and then when you down*** it, we can make it together in Teamviewer _________________________ See a lots of creative DS Hacking here If you want to support me, you might check out my Patreon Page : )

Freeze	Posted on 10-16-11, 11:37 am Hi. Link ID: 5135 +0
Karma: 3772 Posts: 537/2112 Since: 06-28-11	Posted by ray I could give you my To*** and then when you down*** it, we can make it together in Teamviewer As you can see, I already downloaded it. But thanks! I just can't install it.

ray	Posted on 10-16-11, 12:33 pm Hi. Link ID: 5136 +0
Roy Koopa Karma: 4021 Posts: 824/2722 Since: 06-26-11	I have a instruction... a txt _________________________ See a lots of creative DS Hacking here If you want to support me, you might check out my Patreon Page : )

LeWario

Posted on 10-19-11, 04:54 pm

Link
ID: 5290
+0

Banned for being a complete idiot.

Karma: 529
Posts: 494/987
Since: 07-09-11

Posted by NsmB_PrO

Posted by ELMario

Posted by Garmichael

My ~~torrent~~ of 3DS Max 6 has been stuck at 98.5% for two days

I want to try this out

Sent you a PM.

Honestly, I would not write this in a public thread.

Though I dont know, what the PM is actually about.

EDIT: I got an error when installing 3dsmax 6.

I think I will never be able to make this.

The error shows up at the VERY end. Then the installatio rolls back.

I can tell you how I got 3ds max 6.

ray	Posted on 10-19-11, 05:09 pm Hi. Link ID: 5291 +0
Roy Koopa Karma: 4021 Posts: 858/2722 Since: 06-26-11	I gave Lui already my Tor**** file He can install it now _________________________ See a lots of creative DS Hacking here If you want to support me, you might check out my Patreon Page : )

LeWario	Posted on 10-24-11, 02:37 pm Hi. Link ID: 5476 +0
Banned for being a complete idiot. Karma: 529 Posts: 513/987 Since: 07-09-11	Video tutorial is uploaded! Now I just need to create the tutorial for objects with more than one texture. Then we can texture irregular shaped objects.

Freeze	Posted on 10-24-11, 02:38 pm Hi. Link ID: 5477 +0
Karma: 3772 Posts: 593/2112 Since: 06-28-11	Posted by ray I gave Lui already my Tor**** file He can install it now Has the same bug. -.- I will never be able to do this.

LeWario	Posted on 10-24-11, 02:49 pm Hi. Link ID: 5479 +0
Banned for being a complete idiot. Karma: 529 Posts: 514/987 Since: 07-09-11	Get VMWare 7.1.4, install Windows on it, and then install 3dsmax6 It will work then. Or just disable or AV or other software.

Freeze	Posted on 10-24-11, 04:01 pm Hi. Link ID: 5481 +0
Karma: 3772 Posts: 595/2112 Since: 06-28-11	I turned off my firewall and don't use Anti Virus. I have installed windows, so I don't see a reasen, why I should install a virtual Machine.

LeWario	Posted on 10-25-11, 03:16 am (rev. 1) Hi. Link ID: 5499 +0
Banned for being a complete idiot. Karma: 529 Posts: 515/987 Since: 07-09-11	Virtual machine because then we'll be very sure that there will be nothing to cause the error to show up. Right now, we're not sure what's causing the problem. Create a new thread about this if you have to. Anyways... </offtopic>

LeWario	Posted on 11-02-11, 04:24 am Hi. Link ID: 5673 +0
Banned for being a complete idiot. Karma: 529 Posts: 531/987 Since: 07-09-11	Sorry for double-post. But just wanted to point out I've updated the top post with some new cool info. Yay, Sketchup!

STORMENT	Posted on 11-16-11, 04:02 am Hi. Link ID: 6001 +0
Buzzy Beetle Just watching... Karma: 503 Posts: 7/386 Since: 07-01-11	is there a way to edit the file w1.nsbmd in 3ds max 6? I mean, maybe convert it to. max _________________________

ray

Posted on 11-16-11, 05:26 am

Link
ID: 6005
+0

Roy Koopa

Karma: 4021
Posts: 970/2722
Since: 06-26-11

First you have to download this.
Place it in your user folder.(C:\Users\"yourname")
Then extract there the archiv. Now go to NSMB editor and extract the w1.nsbmd to C:\Users\"yourname".
Now open cmd (windows key + R, then type in "cmd" and Press enter) and type now in: "nsbmd w1.nsbmd"
Now a new window opens where you have to choose the renderer. Its also in the rar named Screencap.glr. Choose that. Then a new window opens where you can look at the model. Now press "Scroll Lock" on your keyboard and move the camera a bit. After that you can close it. Now you'll have a "screencap.obj" file. Thats the obj file of w1.nsbmd
BUT IT HAS NO TEXTURES!
_________________________

See a lots of creative DS Hacking here
If you want to support me, you might check out my Patreon Page : )

STORMENT

Posted on 11-17-11, 04:16 am

Link
ID: 6030
+0

Buzzy Beetle
Just watching...

Karma: 503
Posts: 8/386
Since: 07-01-11

Posted by ray

i did it but how can i edit the file screencap.obj? what i want to do is edit the w1.nsbmd, but use it like for a model, i don't want to lose for example the cannon or the lines where mario walks. is it possible?
